1920 HD

 Can be directly projected on the wall

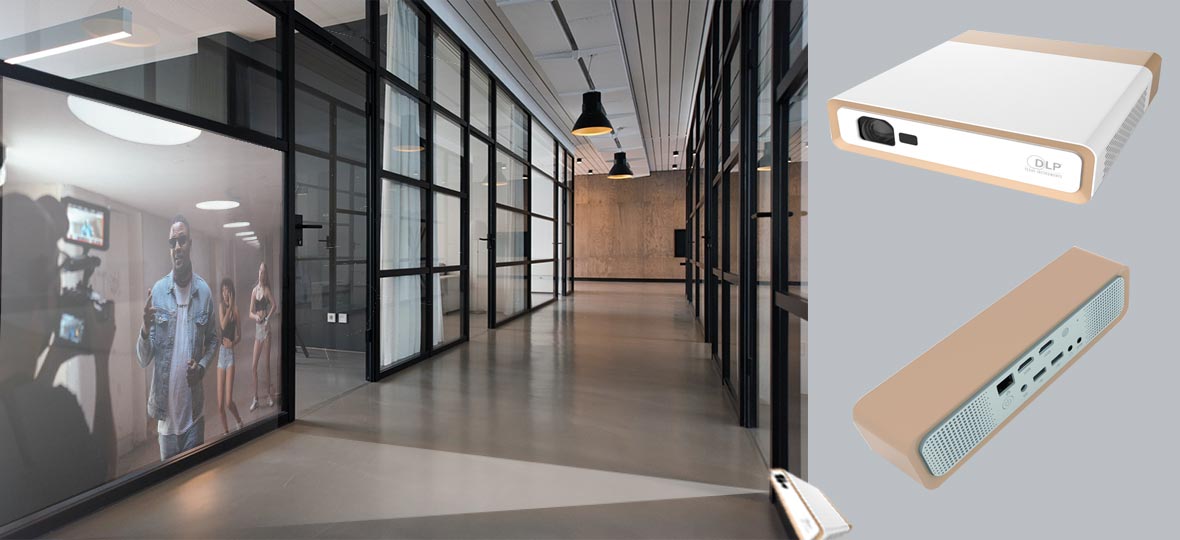

 Can also be directly projected on the glass wall



Did you use all this space?

Parking lot, pedestrian elevator entrance, etc., the crowd is large, more suitable for advertising


Projector advertising displayer High arrival





Bring your own 4G network

Built-in 4G network does not require an external router,
and it also supports WiFi connection, with a variety of connection methods to choose



Without wireless remote control

Equipped with a 4G line remote control,
no longer limited by the remote control angle, 360 degrees has no dead ends.





Simple and flexible installation

Can be installed in the elevator or outside the elevator

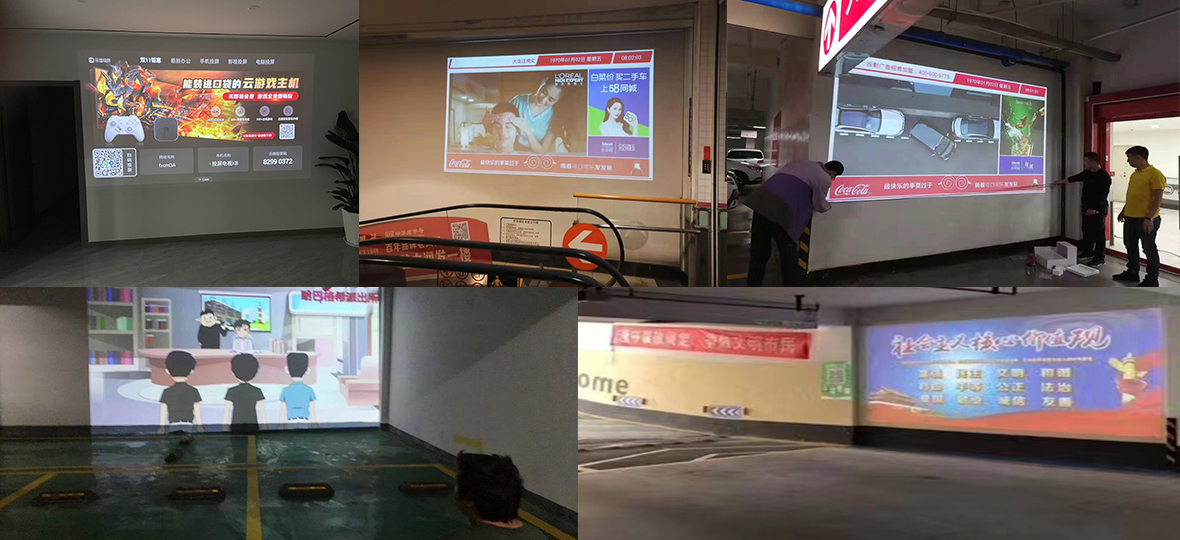

Application scenarios

Parking lot, elevator entrance, etc. any where's wall with crowd,
Can also be projector on glass walls.




Specification F1 projector

---

---

Projection specification: DMD Ti0 47"，1080P
Light source technology: RGB-led, OSRAM light source imported from Germany
Light source life: 30000h
Resolution: 1920 * 1080
Brightness: 1100ansi lumens
Contrast: 10000:1
Projection distance: 10-180 inches @1m39 inches
Projection ratio: 1.2:1
Projection mode: Forward projection, rear projection, hoisting
Trapezoidal correction: 40 degrees up and down, about 30 degrees
3D technology: American Ti active shutter 3D technology, supporting up and down 3D, left and right 3D

F1 functional features
Operating system: quad-core, Android 7.0
Memory: 2GB
Hard disk: 16GB
Wired network: Support 100m wired network
WiFi: Support 802.11 a / BLG / N wireless network, dual-band Wifi
Bluetooth: 4.0

Interface: USB2 0*2, HDMl in*2, RJ45*1, Micro SD*1, Audio*1, SPDIF*1, DC-in*1
Key: Power key
Horn: 8W * 2
Overall power: 90W
Video format: Support shutter 3D video playback and 4K video playback

F1 other parameters
Size: 220 * 220 * 55mm
Weight: 1.25Kg
Power supply: 19v / 4.74A
